Azure Load Balancing & Network Security

SLA for Virtual Machines

  • VMs that have two or more instances deployed across two or more availability zones in the same Azure region, MS guarantee 99.99% of connectivity to at least one instance.
  • 99.95% connectivity to at least one instance if VMs deployed in the same availability set or in the same dedicated host group.
  • VM using premium SSD for OS and data disk shall have 99.9% connectivity guarantee, 99.5% in case of standard SSD, 95% in case of standard HDD.
It implies that using 2 or more VM leads to 4 9 of availability means 4 min downtime in a month.

Availability Set

  • The logical grouping of VMs allows Azure to understand how the application is built to provide for redundancy and availability.
  • There is no cost for the availability set itself, just need to pay for added VM instances.
    • Fault Domain: physical separation of these virtual machines so that no hardware failure will disrupt both of them.
    • Update domain

Availability Zone

  • Is a physically separate zone, within an Azure region.
  • There are three availability zones per Azure region.
  • Each availability zone as a distinct power source, network, and cooling.
  • It protects applications and data from the loss of data centers.
  • If one zone is compromised, then replicated apps and data are instantly available in another zone.

Virtual Machine Scale Set

  • Create and manage a group of load-balanced VMs
  • The number of VM instances can automatically increase or decrease in response to demand or a defined schedule.
  • There is no cost for the scale set itself, you only pay for each VM instance that you create.
  • Virtual machines in a scale set can also be deployed into a single Availability zone, or regionally.

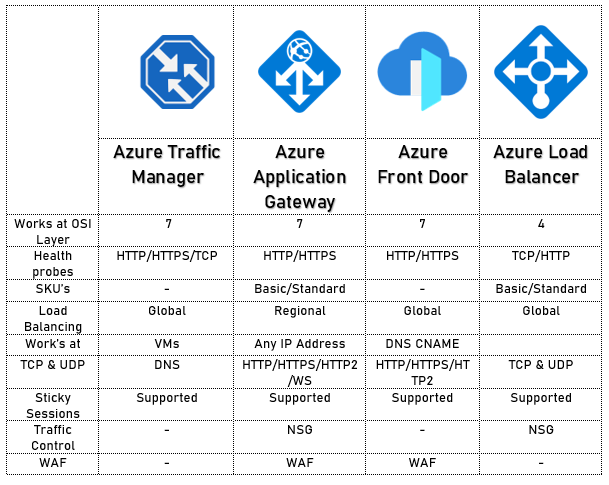

Load Balancer

  • Combine the Azure Load Balancer with an availability zone or availability set to get the most application resiliency.
  • Standard tier virtual machines, the Azure Load Balancer is included.
  • Load balancer helps in increasing availability of website and application
  • Works at layer 4
  • It can also be used to balance the load to containers and PaaS applications
  • Global load balancing with Non-HTTPS as recommended traffic
  • Supports up to 1000 backend VMs

Azure Firewall



Azure Firewall Manager


Application Gateway

  • Works at layer 7
  • SSL termination
  • Cookie-based session affinity
  • Reginal load balancing with HTTPS as recommended traffic


Traffic Manager

  • Works at layer 7, DNSs load balancer
  • Load balancer for geographically distributed datacenters
  • Uses DNS to redirect requests to an appropriate geographical location endpoint
  • It Does not see the traffic passing between the client and the service. It simply redirects the request based on the most appropriate endpoints
  • Best suitable for load between two endpoints where your first endpoint is in Azure and the second endpoint placed in an on-premise datacenter
  • Global LB with Non-HTTPS as recommended traffic

Content Delivery Network (CDN)

  • Deliver pages and other Web content to a user, based on the geographic locations of the user, from nearest POP.


Azure FrontDoor

  • Works at layer 7
  • Offers a single global entry point for customers accessing web apps, APIs, content, and cloud services.
  • Global load balancing, but it is doing more by enhancing performance
  • Promptly connect to the nearest Front Door POP
  • Increase application availability with smart health probes
  • URL based routing
  • Cookie-based session affinity
  • SSL termination



Azure Bastian

  • Allows to connect to virtual machine without RDP port open


Notes

  • DNS traffic always travel over UDP
  • When we update DNS servers in Azure Firewall, it will restart the attached virtual machines.
  • If the virtual machine doesn't have public IP address we can RDP to VM using the firewall's public IP.
